Locking Pillars
Locking Pillars
Also known as 4000XF the Armaton Locking pillars is weight-optimized pillar system providing maximum payload for vehicles with a load capacity up to 6 tonnes. The pillars are easy to handle, durable and ergonomic – a natural choice for those who need all the advantages of a pillar with flexibility and stability when attaching boxes or covers. Made of anodised aluminium, the product is virtually maintenance-free.
Also known as 4000XF the Armaton Locking pillars is weight-optimized pillar system providing maximum payload for vehicles with a load capacity up to 6 tonnes. The pillars are easy to handle, durable and ergonomic – a natural choice for those who need all the advantages of a pillar with flexibility and stability when attaching boxes or covers. Made of anodised aluminium, the product is virtually maintenance-free.

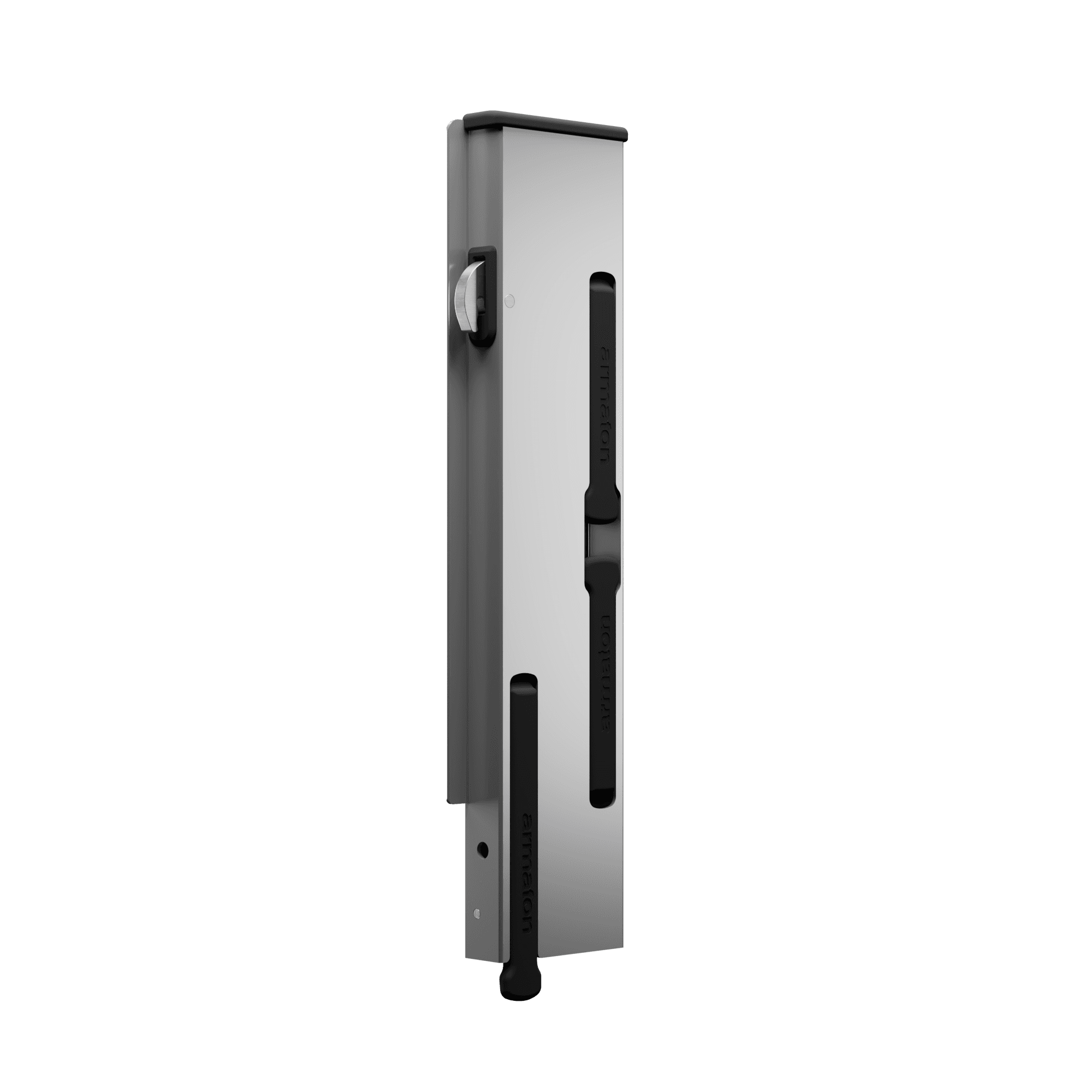

4000 XF
The classic armaton locking pillar system.
4000 XF
The classic armaton locking pillar system.
MP Pillars
A refined version of 4000XF with a more compact handle integrated design
MP Pillars
A refined version of 4000XF with a more compact handle integrated design
The 3-Step Mechanism
The 160° handle movement enables quick, effortless loading and unloading. The handle is also interchangeable for easy maintenance.
Step 1: Neutral position
Step 2: The lock hook is not affected, clearance
Step 3: The lock hook opens
The 3-Step Mechanism
The 160° handle movement enables quick, effortless loading and unloading. The handle is also interchangeable for easy maintenance.
Step 1: Neutral position
Step 2: The lock hook is not affected, clearance
Step 3: The lock hook opens

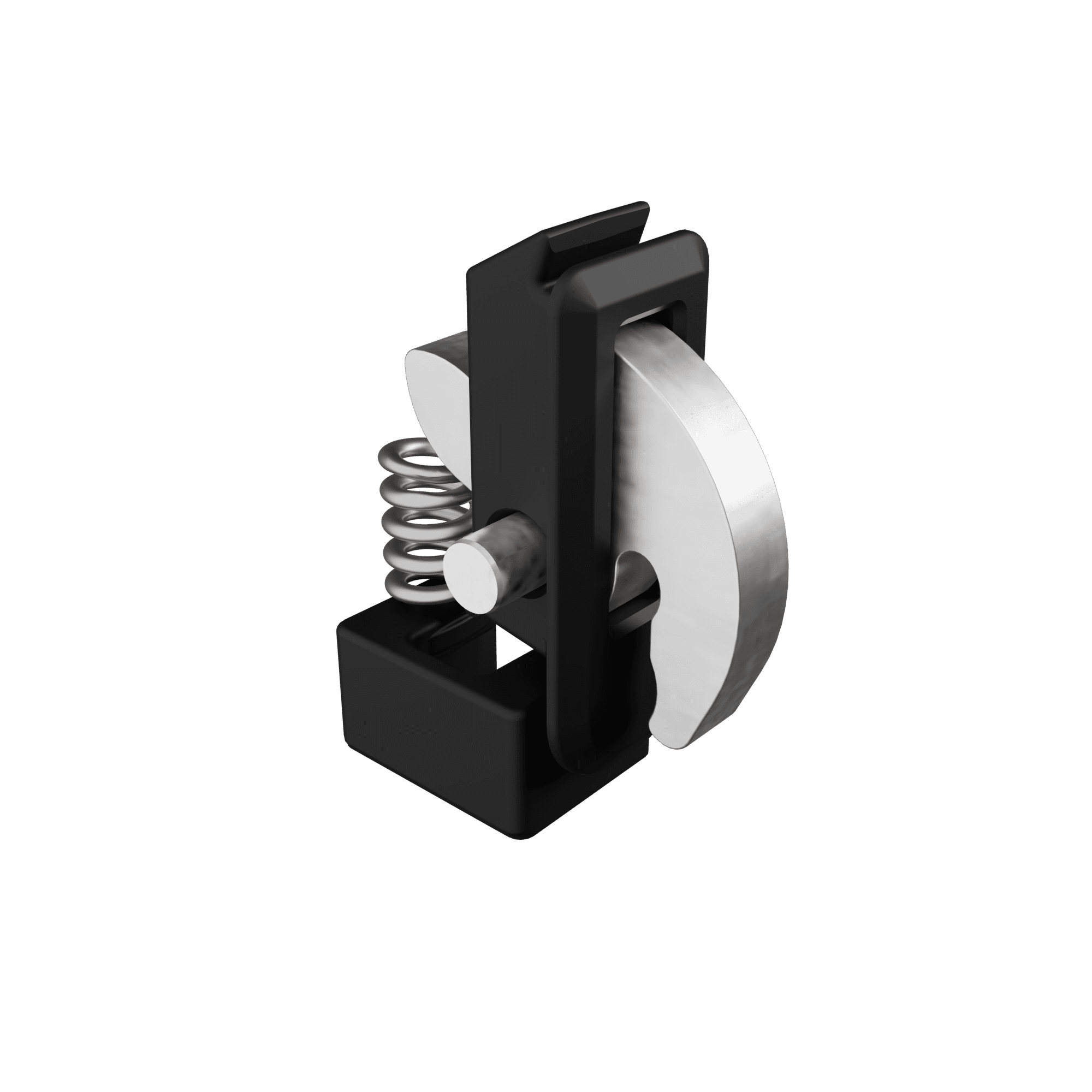

No slams, great retrieval capability.
The lock hook is spring-loaded so that, together with the wear pad, completely remove the mud in all directions betweeen the post and edge shoe. The design is optimized for maximum acquisition capacity. Which provides a simple, smoth and distinct locking.
No slams, great retrieval capability.
The lock hook is spring-loaded so that, together with the wear pad, completely remove the mud in all directions betweeen the post and edge shoe. The design is optimized for maximum acquisition capacity. Which provides a simple, smoth and distinct locking.

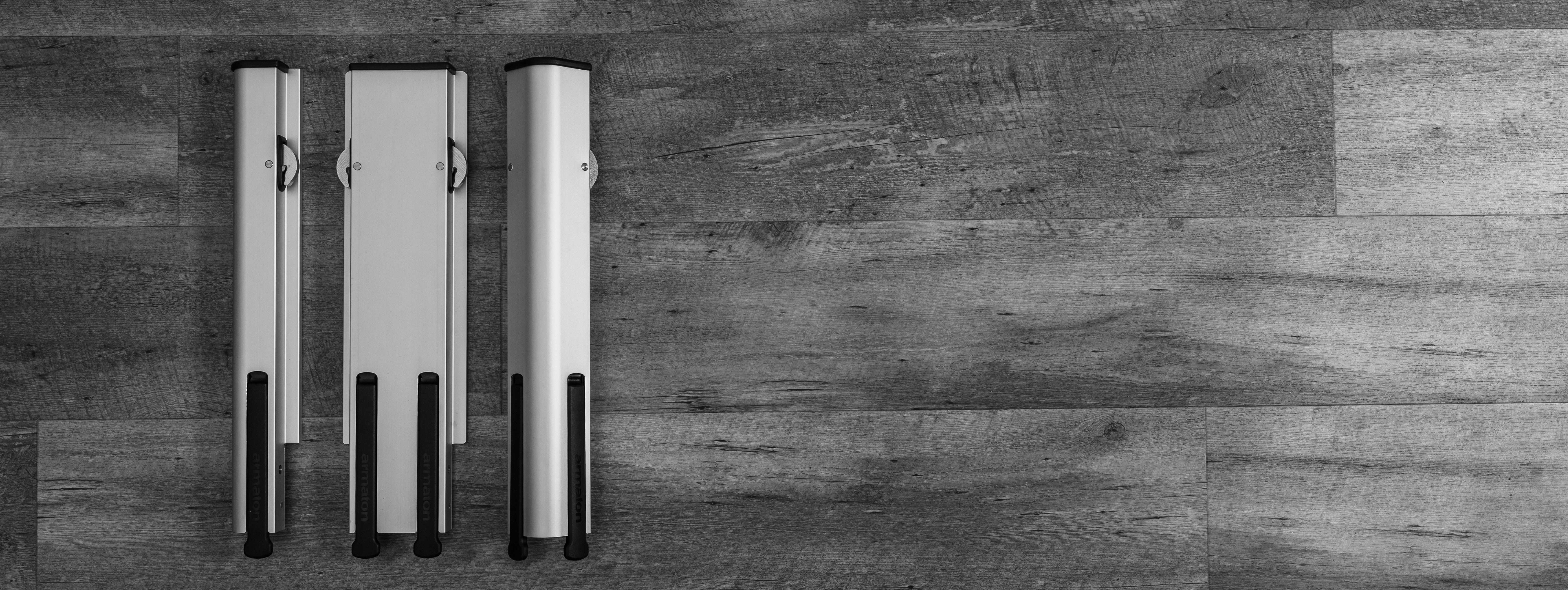

Standard for three dropside heights.
Armaton 4000XF is available as standard for three dropside heights of 300, 400 and 600 mm.
Standard for three dropside heights.
Armaton 4000XF is available as standard for three dropside heights of 300, 400 and 600 mm.

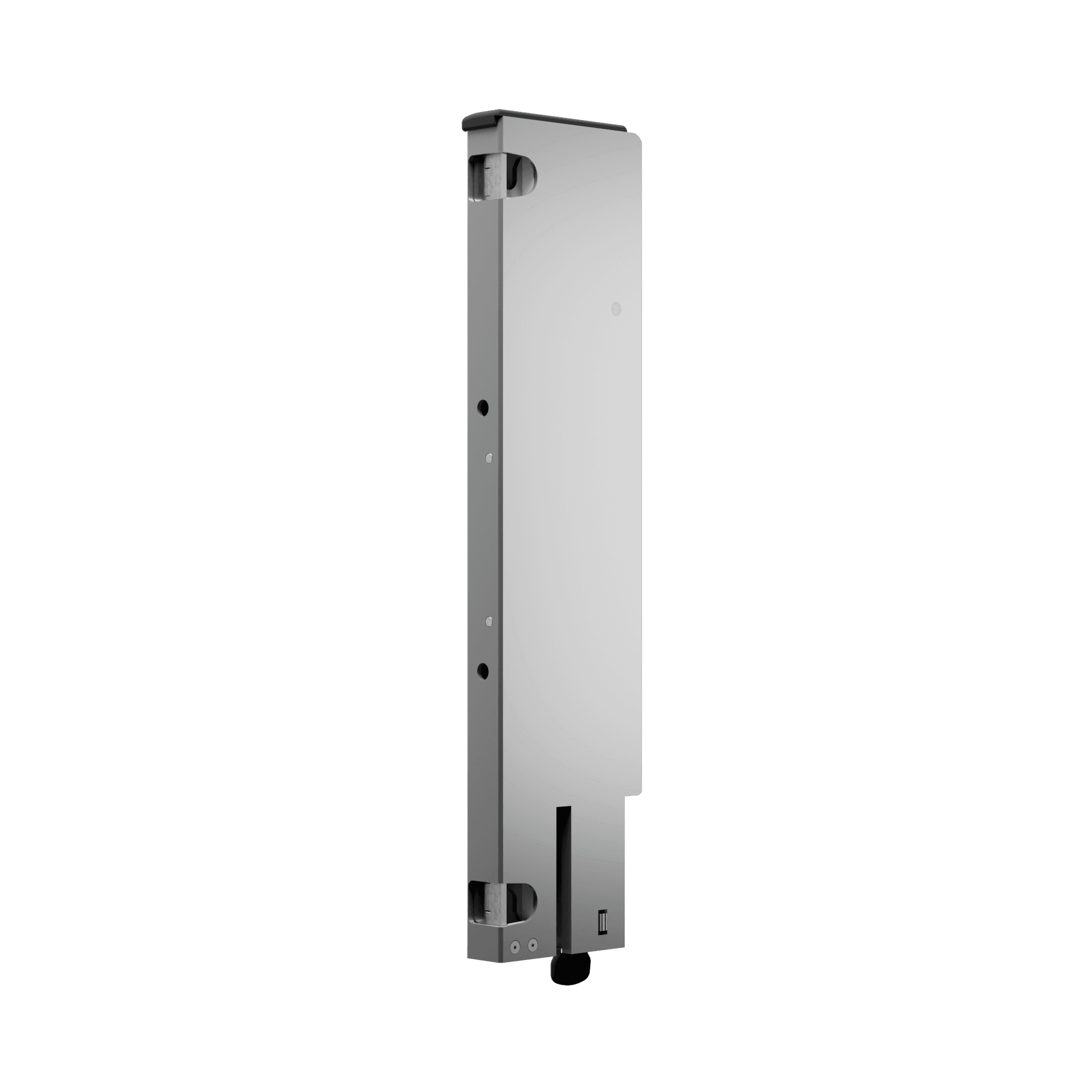

Stable and safe attachment.
Side and rear pillars can, if necessary, be lifted off the bracket in the open position. When closed, they are locked.
Stable and safe attachment.
Side and rear pillars can, if necessary, be lifted off the bracket in the open position. When closed, they are locked.

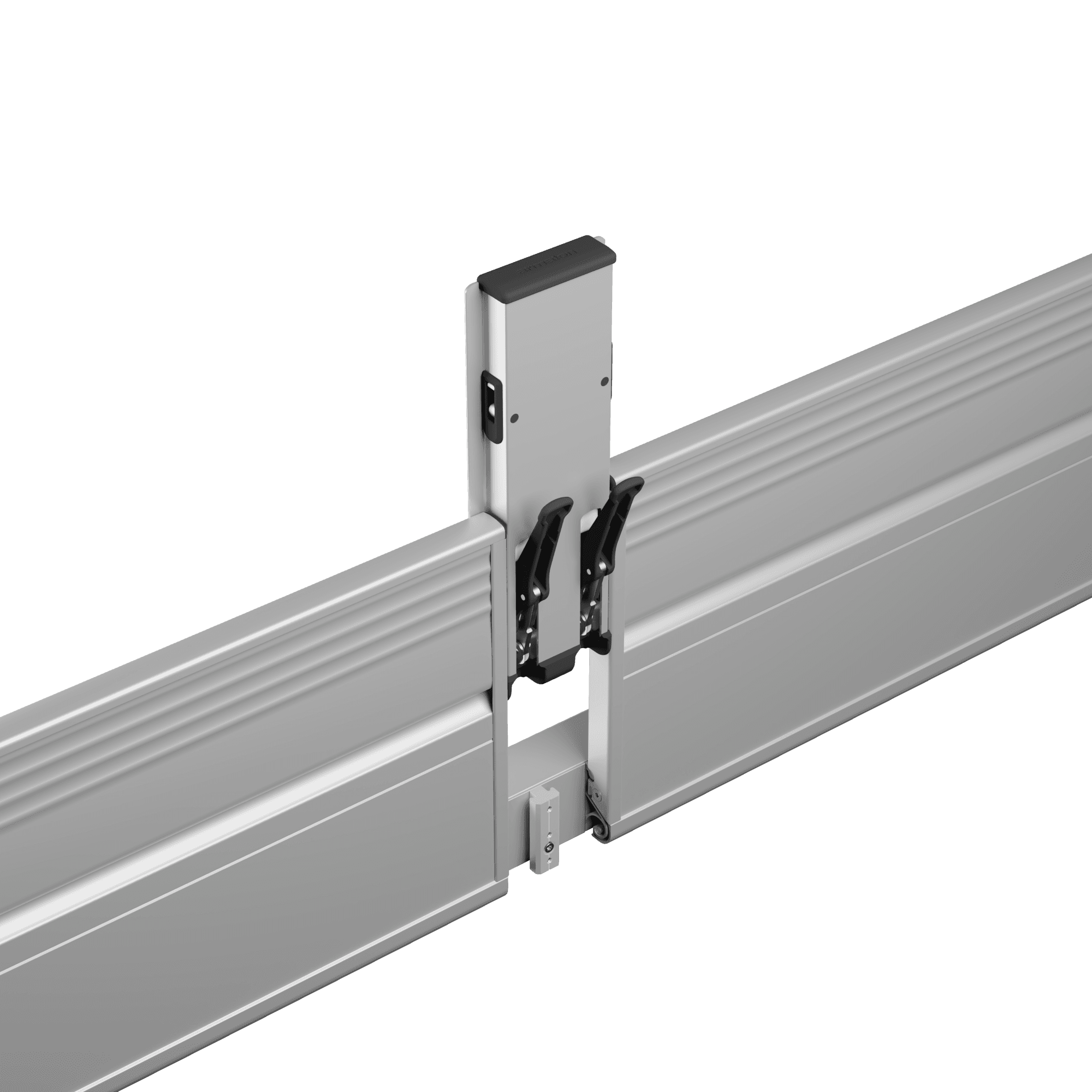

Armaton 4000 XF Tip pillar
The tip pillar is mounted on the edge of the side rave, which gives a smooth inside surface where no goods get stuck during tipping. The tip pillar has three mechanisms, two combined as hinges and one for locking the dropside, which provide a compact, ergonomic and weight-optimized solution
Armaton 4000 XF Tip pillar
The tip pillar is mounted on the edge of the side rave, which gives a smooth inside surface where no goods get stuck during tipping. The tip pillar has three mechanisms, two combined as hinges and one for locking the dropside, which provide a compact, ergonomic and weight-optimized solution
